GENERALDESCRIPTION

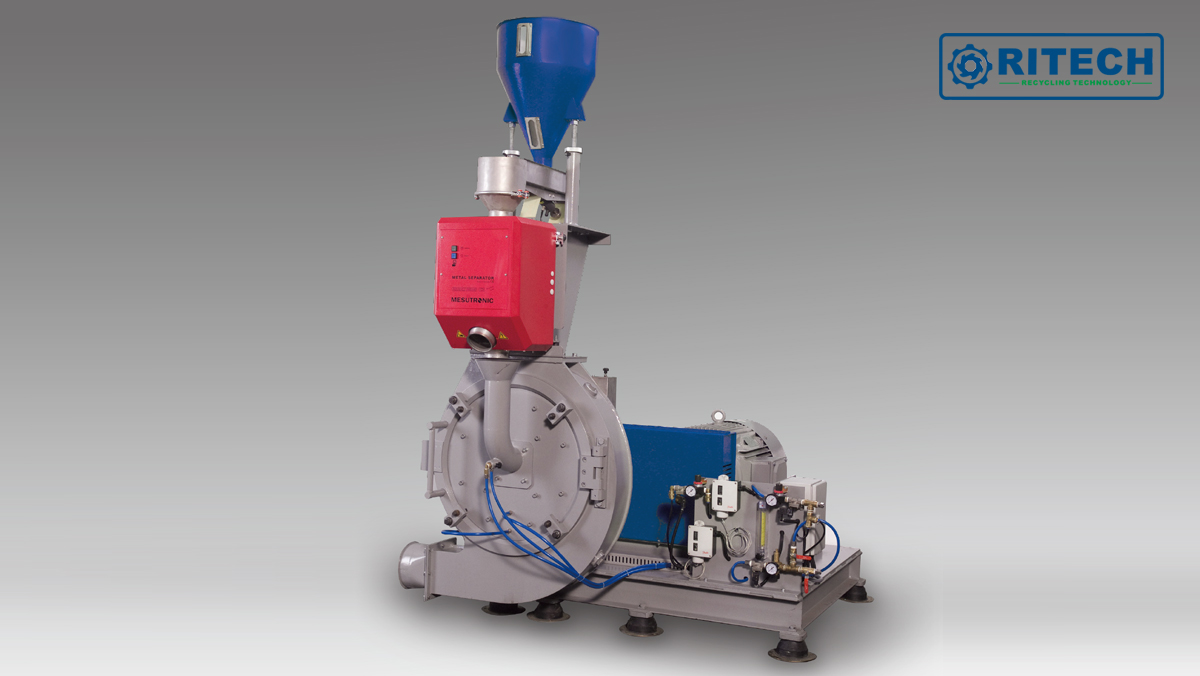

The PM High Speed Precision Pulverizers are available with disc diameters ranging from 300mm to 800mm. They are high speed precision grinding machines used for processing medium hard, impact resistant and friable materials. The infeed material is fed via a vertically mounted fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force transfers the material through the grinding chamber and the discharge powder is collected via a blower and cyclone unit.

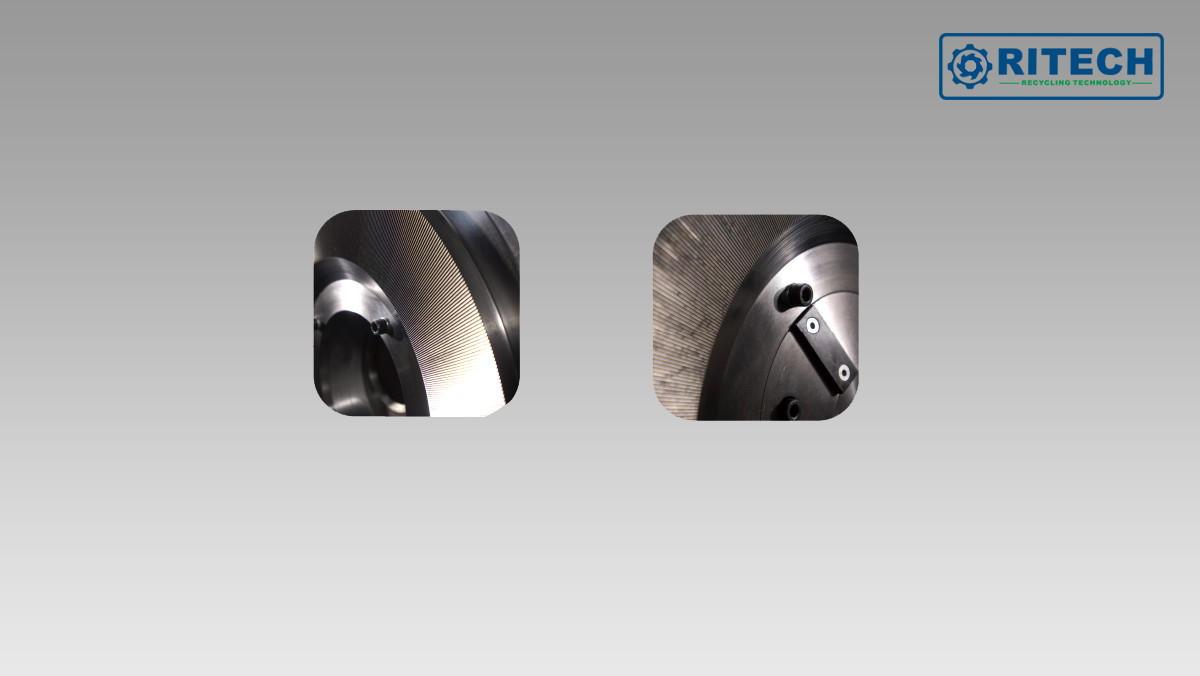

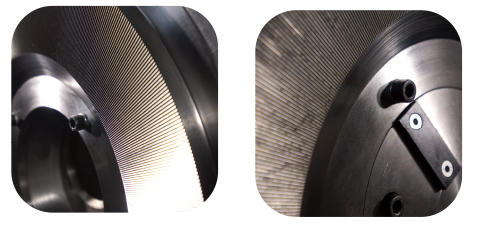

The PM range can be equipped with either one piece or segmented grinding discs which are made from chrome nickel tool steel as standard and can be treated for increased wear resistance.

The material temperature is monitored automatically throughout the process and an automatic cooling system ensures that temperature levels are kept within a safe range.

The material is fed into the machine via a vibrating dosing channel, the feeding rate is automatically adjusted based on the amperage of the motor and material temperature readings.

The base frame has a solid welded construction with anti-vibration rubber feet to reduce vibration and noise.

The drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. Integrated suction trough for material discharge.

Integrated rundown safety device prevents access to the discs until they have come to a complete stop. A safety switch prevents machine startup when the disc cover is open and the machine features emergency stop buttons on the machine body and control panel.

APPLICATIONS

PM High Speed Precision Pulverizers have been designed with a range of applications and industries in mind such as:

PLASTICS (Predominantly PVC regrind) / ROTOMOLDED PE / OTHER FRIABLE MATERIALS

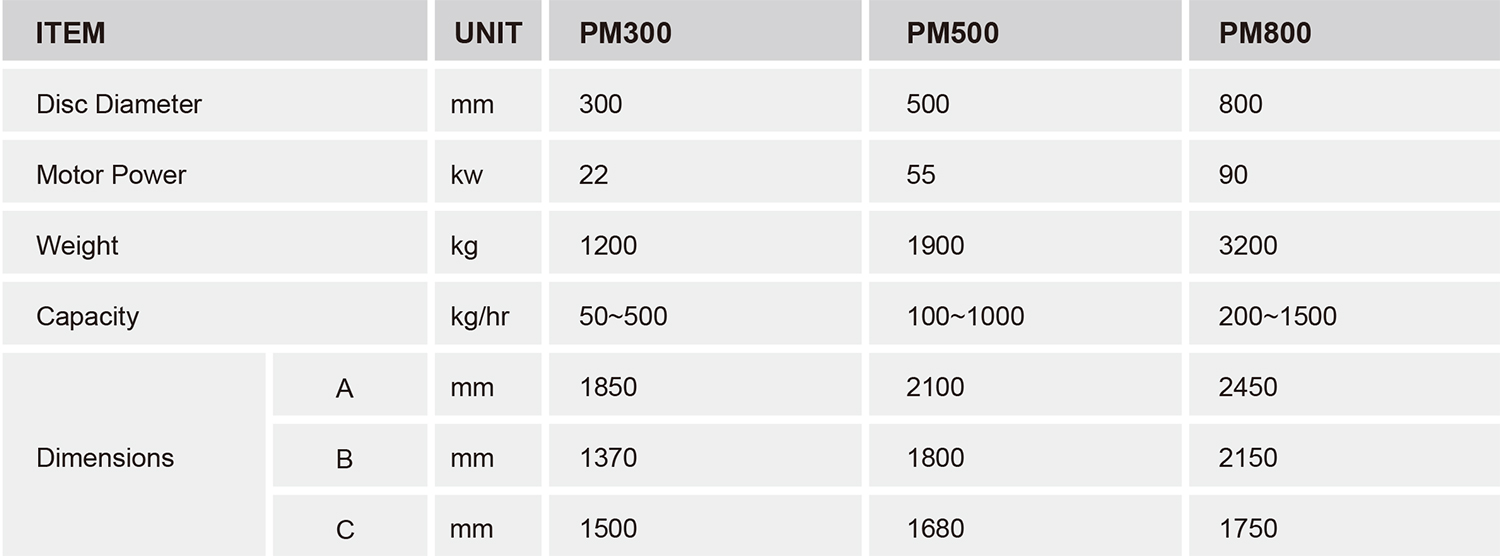

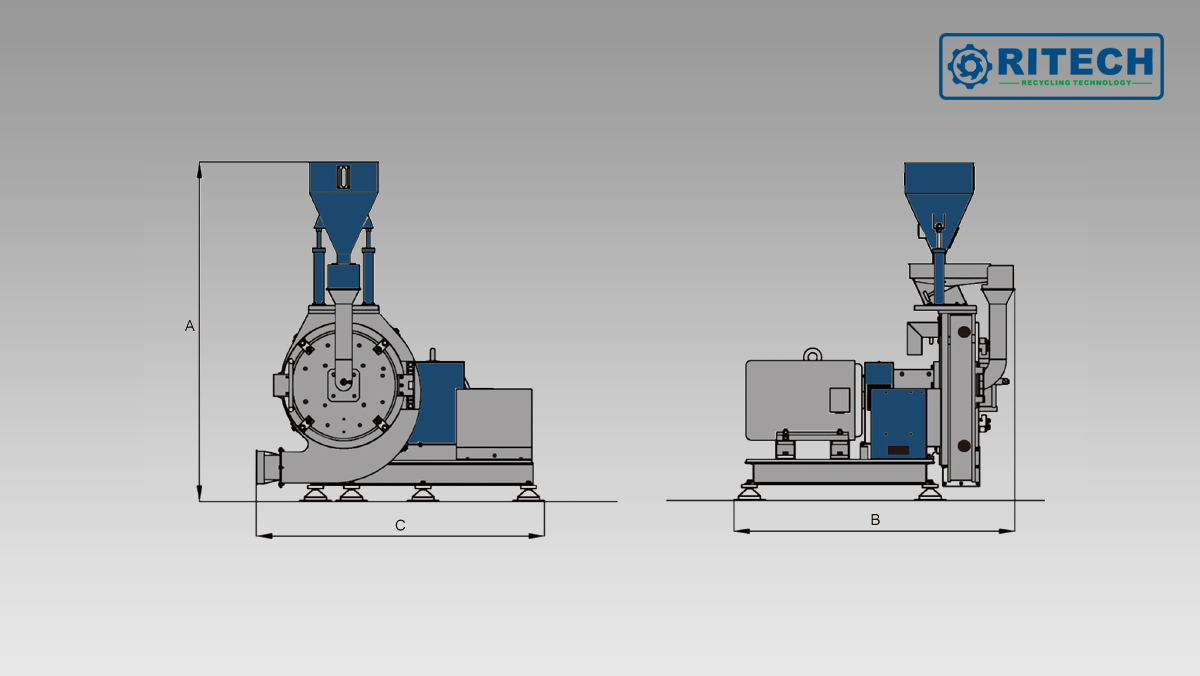

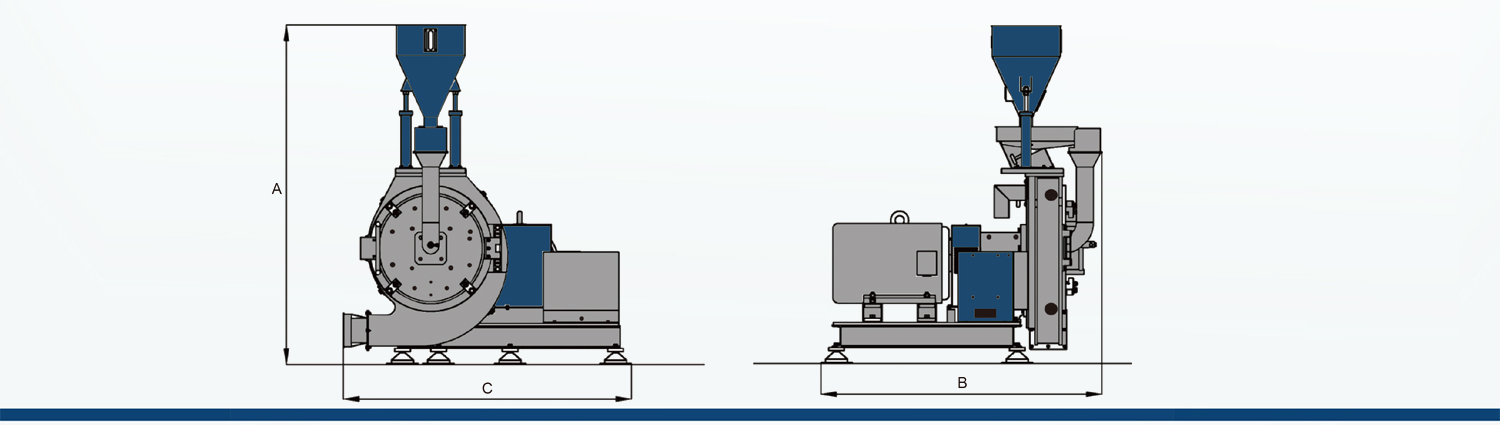

SPECIFICATION
