GENERALDESCRIPTION

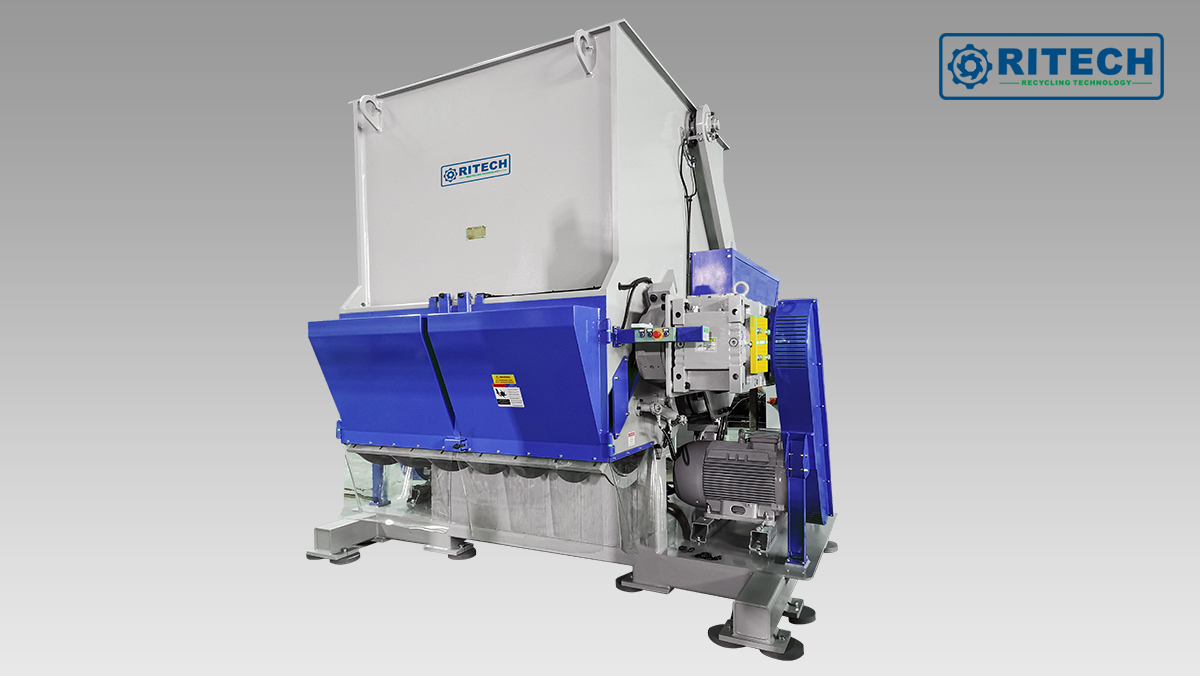

The SX Heavy Duty Single Shaft Shredder has a 750mm diameter profiled rotor made of solid steel, operating at a speed of 52rpm. The concave ground, aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the counter knives and the rotor which guarantees a high flow rate, low power consumption and maximum output of shredded material.

The hydraulically operated ram feeds the material automatically in the rotor’s cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.

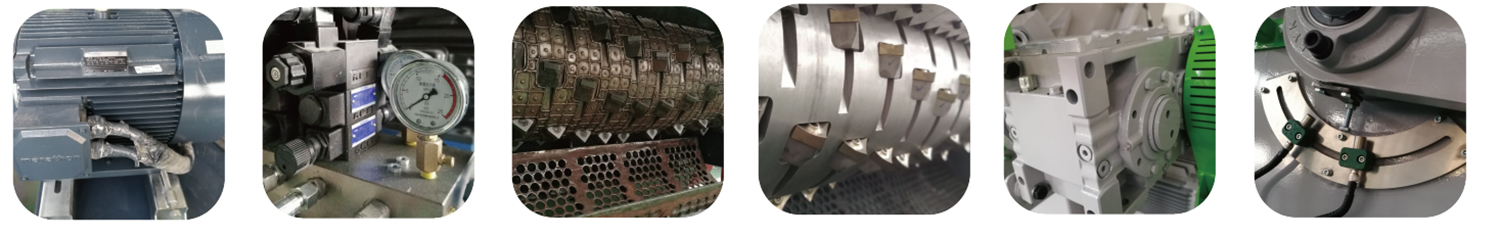

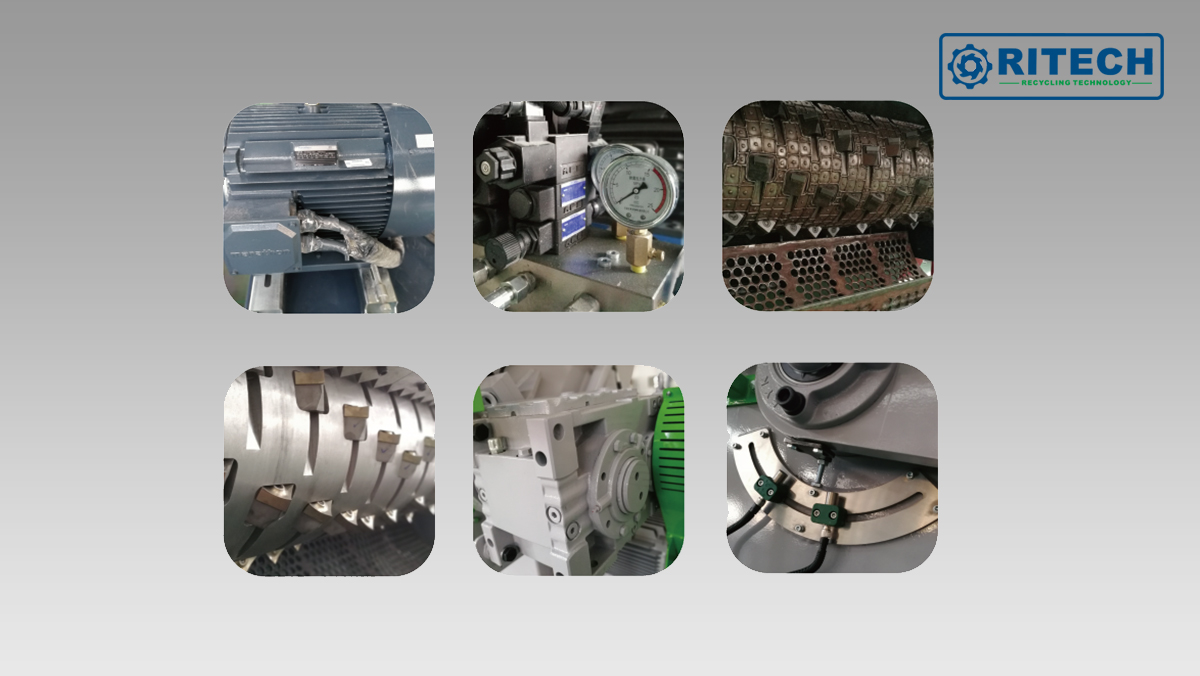

Extremely robust pedestal bearing housings are mounted outside the machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long service life and minimum service and maintenance. Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end on one end of the rotor.

A safety switch prevents machine startup when the front panel is open and the machine features emerge ncystop buttons on the machine body and control panel.

APPLICATIONS

SX Single Shaft Shredders have been designed with a wide range of applications and industries in mind such as:

PLASTICS / RUBBER /WOOD / BIOMASS / PAPER / ALTERNATIVE FUELS (RDFISRF)/ DOMESTICICOMMERCIAL WASTE

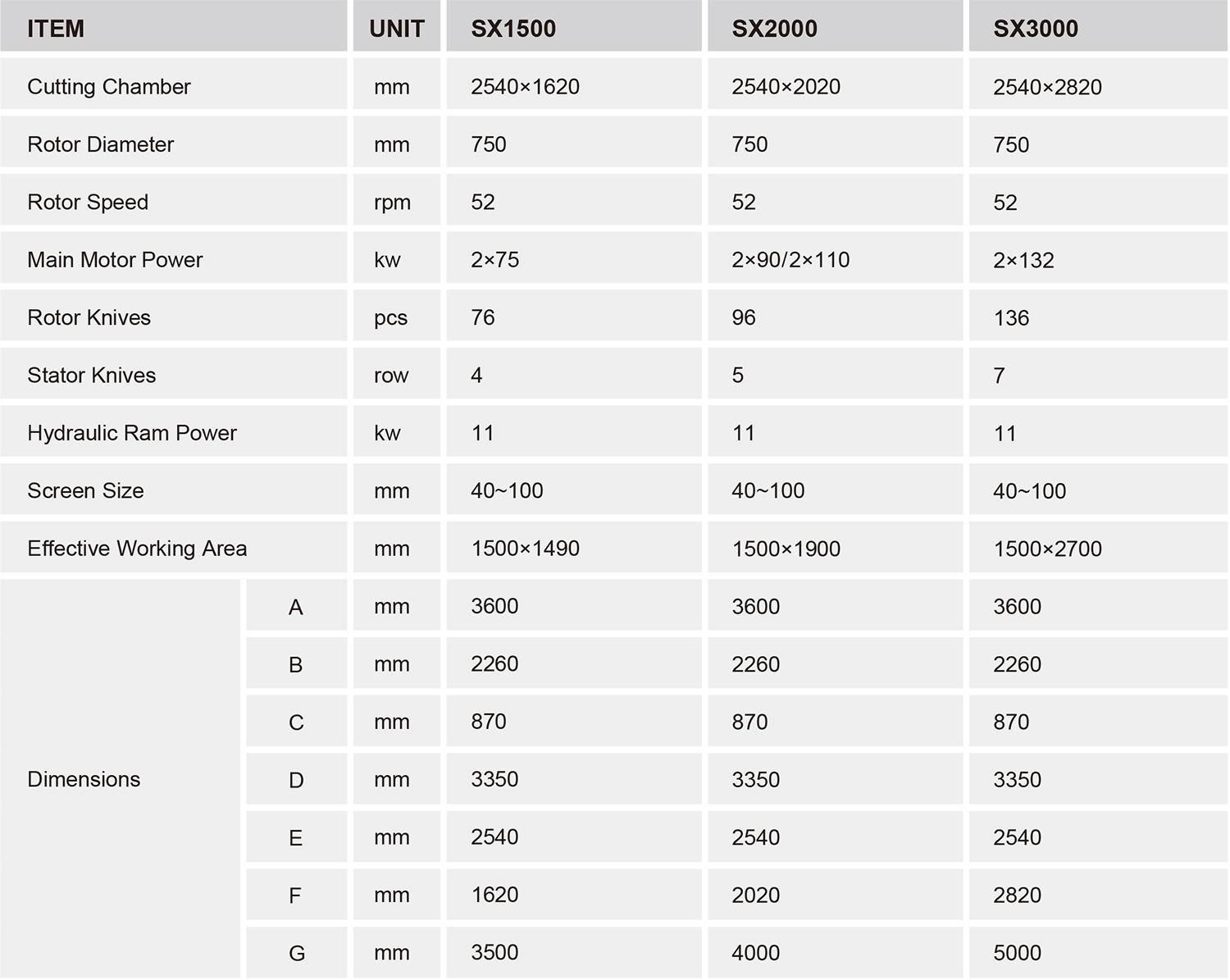

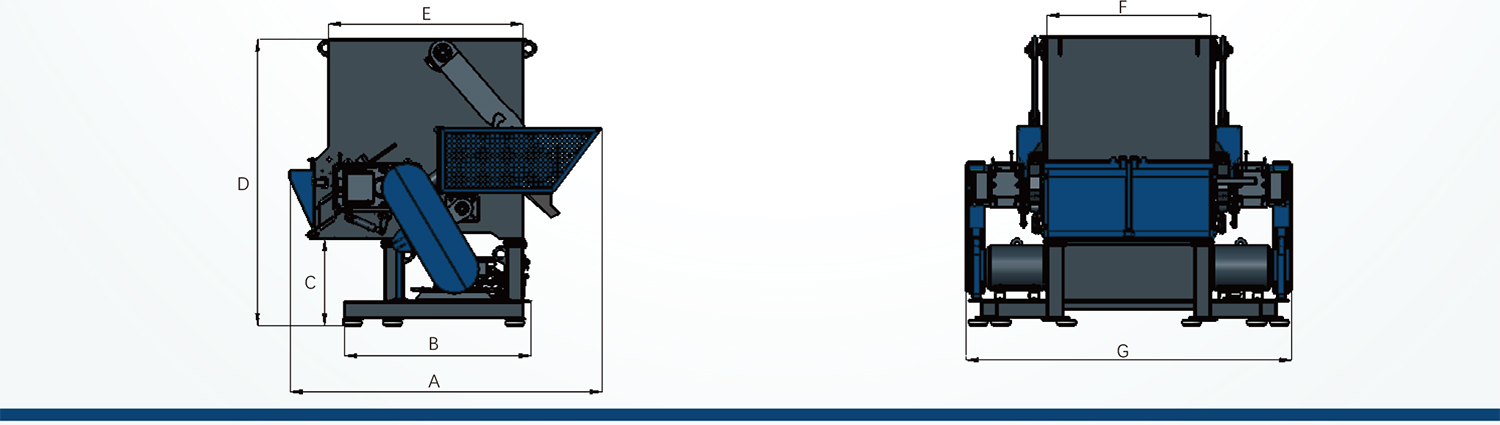

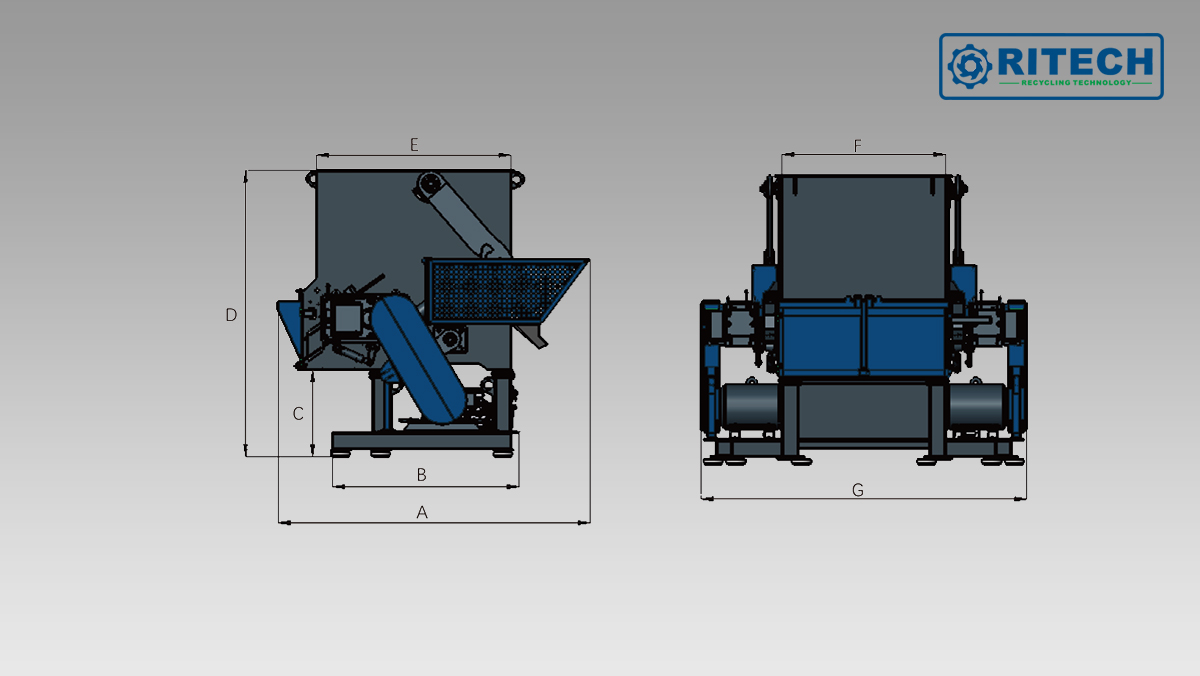

SPECIFICATION
